Choosing gym flooring rolls vs tiles comes down to your room layout, training and installation plans. Rolls can give a larger space a continuous finish with fewer joins. Rubber tiles make it easier to build a dedicated training area, replace individual sections and choose thicker flooring for demanding zones.
For a home or garage gym, start with what happens on the floor: cardio, controlled strength training or dropped weights. Then compare the material, thickness and installation requirements. This guide explains how to choose rubber gym flooring without buying solely on appearance or millimetres.

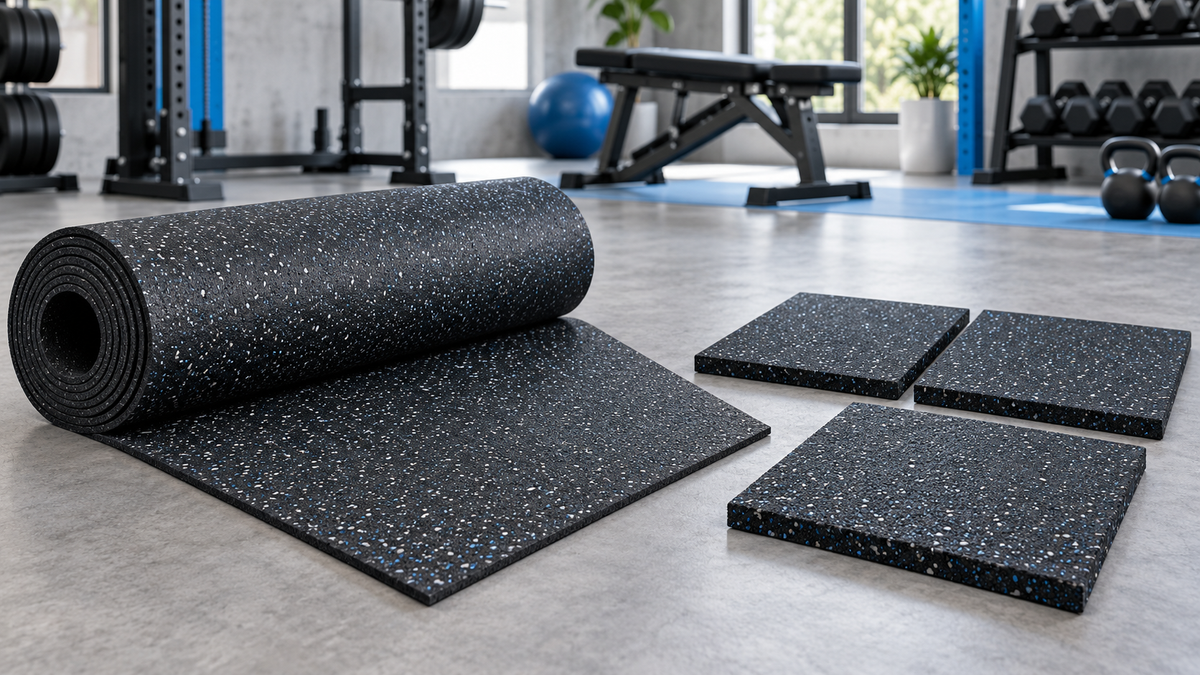

Gym flooring rolls vs tiles: a quick comparison
| What matters | Rubber rolls | Rubber tiles |
|---|---|---|
| Layout | Useful for covering open, regular-shaped areas with fewer joins. | Useful for smaller areas, separate zones and phased installations. |
| Fitting | Plan roll widths, seam positions and cuts. Fixing depends on the product. | Lay out individual tiles; check whether they loose-lay, connect or require adhesive. |
| Repairs | Replacing a damaged area may involve cutting and matching a section. | An individual tile can often be replaced, subject to the fitting system. |
| Thickness choices | Often considered for thinner, continuous floor coverings. | Commonly offered in thicker options for strength-training zones. |
| Total cost | Include cutting waste, seam work, adhesive and fitting where required. | Include cuts, connectors, edge ramps and fitting where required. |
Quick choice: shortlist rolls for a continuous covering over a larger area; shortlist tiles for modular layouts and thicker lifting zones. Neither format is automatically suitable for dropping weights.
When rubber gym flooring rolls make sense
A roll can create a clean-looking base for a home gym or studio, especially where the room is rectangular and you want fewer visible seams. Measure the usable width as well as the total square metres: a roll's stated area does not guarantee it will fit your room without offcuts.
Check whether the floor needs adhesive, tape or another fixing method. Allow for acclimatisation and subfloor preparation in the manufacturer's instructions. Thin rubber should not be treated as an impact platform simply because it covers concrete.
Peak Foundry's Gym Flooring collection includes the Sprung Jet Black Rubber Flooring Roll, with a 4mm option listed. Check the selected variant and its intended use before ordering.
When rubber gym floor tiles make sense
Tiles suit buyers who want to cover a defined training zone or expand their setup later. They can also simplify moving flooring through a narrow doorway and replacing a worn section. Some products have straight edges; others use interlocking edges or separate connectors. Those fitting systems are not interchangeable.
Our range includes the Sprung 20mm PRO Rubber Gym Flooring Tile, 20mm Konnecta Snowflake self-locking flooring, 30mm EasiFit mats and a 43mm PRO Anti-Shock tile. Compare each product's specification and installation method rather than assuming every tile performs the same way.
What gym flooring thickness do you need?
Thickness is a starting point, not a performance guarantee. Rubber density, construction, the supporting floor, equipment feet and how weights are handled all affect suitability. Use these ranges to decide which specifications to investigate.
- 4–6mm rubber: consider for general surface protection or suitable machine areas where weights will not be dropped. Confirm equipment compatibility and fixing requirements.
- 8–10mm rubber: a range to investigate for general home fitness and controlled exercise. It does not automatically make the floor suitable for heavy free-weight impacts.
- 15–20mm rubber: commonly considered for strength-training areas. Check the exact tile's intended use and any restrictions on impacts or equipment loading.
- 30mm and thicker rubber: worth investigating for more demanding impact zones. Specialist options such as the 43mm PRO Anti-Shock tile still require product-specific guidance and a suitable subfloor.
Not every thickness above is currently stocked at Peak Foundry. For Olympic lifting or repeated drops, ask for a specification matched to your weights, drop height and building. A dedicated lifting platform or additional impact system may be needed.
Rubber, EVA foam, vinyl and turf are different materials
A 20mm foam mat is not equivalent to a 20mm rubber tile. EVA tatami mats are intended for activities such as martial arts and floor exercise; they should not be chosen as a substitute for rubber under free weights. Vinyl sports and dance flooring has different performance requirements again. Turf is a specialist training surface, with suitability depending on its construction and backing.
Our collection includes these different materials, so read the full product name and specification. Comparing thickness only makes sense once you have confirmed that the material suits your training.
Choosing flooring for a garage gym
Before fitting garage gym flooring, check that the base is sound, level, dry and compatible with the chosen product. Flooring will not correct damp or structural problems. Measure door clearance after adding the full flooring build-up, and plan ramps at exposed edges.
Think about the complete layout: space to load a barbell, move a bench and walk around equipment. If different zones use different thicknesses, plan a safe transition between them. Where a rack requires anchoring, follow the rack and flooring manufacturers' instructions.
How much gym flooring should you order?
For a rectangular room, multiply length by width. A 4m × 3m garage training area is 12m². That is the starting area, before allowances for cuts and the product's pack size.
A 50 × 50cm tile covers 0.25m², so four cover 1m² before cutting. For rolls, sketch the strips using the actual roll width and length. Check whether the selling unit is one tile, a pack or a complete roll; then add the cutting allowance recommended for your layout.
Compare the total installed cost per square metre, including delivery, fixings, edge pieces, waste and labour. A lower headline price may not produce the lowest finished cost.
Gym flooring questions answered
Are rolls or tiles better for a home gym?
Rolls are worth considering for a continuous covering with fewer joins. Tiles are useful for modular layouts, individual replacements and thicker zones. Your activities and the product specification should decide the final choice.
Is 20mm gym flooring enough for weights?
It depends on the exact product, supporting floor and whether weights are lowered under control or dropped. Do not infer an approved weight or drop height from thickness alone.
Will rubber flooring soundproof my gym?
Rubber can help manage some impact noise, but it does not make a room soundproof. Sound can travel through walls and the building structure. For sensitive locations, request acoustic test information for the complete proposed floor system.
Can I put gym flooring over carpet?
Do not assume so. Carpet can create a soft, uneven base and affect tile joints or equipment stability. Check the installation instructions; a firm, level subfloor may be required.
Find the right flooring for your training space
Start with your training, then choose the material, format and thickness. Browse Peak Foundry's gym flooring rolls, tiles and mats and check each product's specification before ordering. For the rest of your room layout, read our beginner's guide to choosing home gym equipment.
Product details checked against Peak Foundry's range in October 2026. Manufacturer reference: Sprung product specifications and material guidance. Always follow the instructions for your selected product.
